全球GL系列配電箱上市

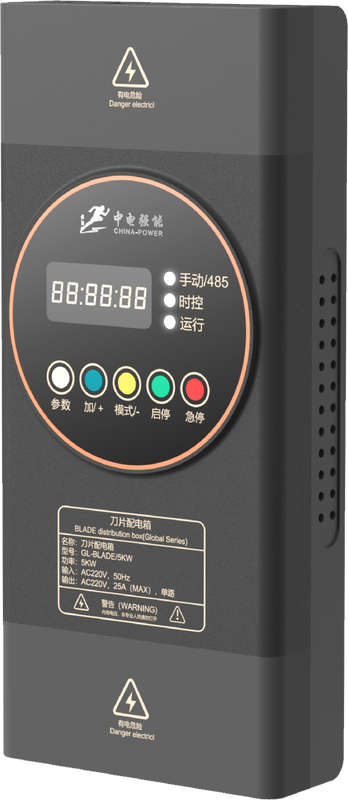

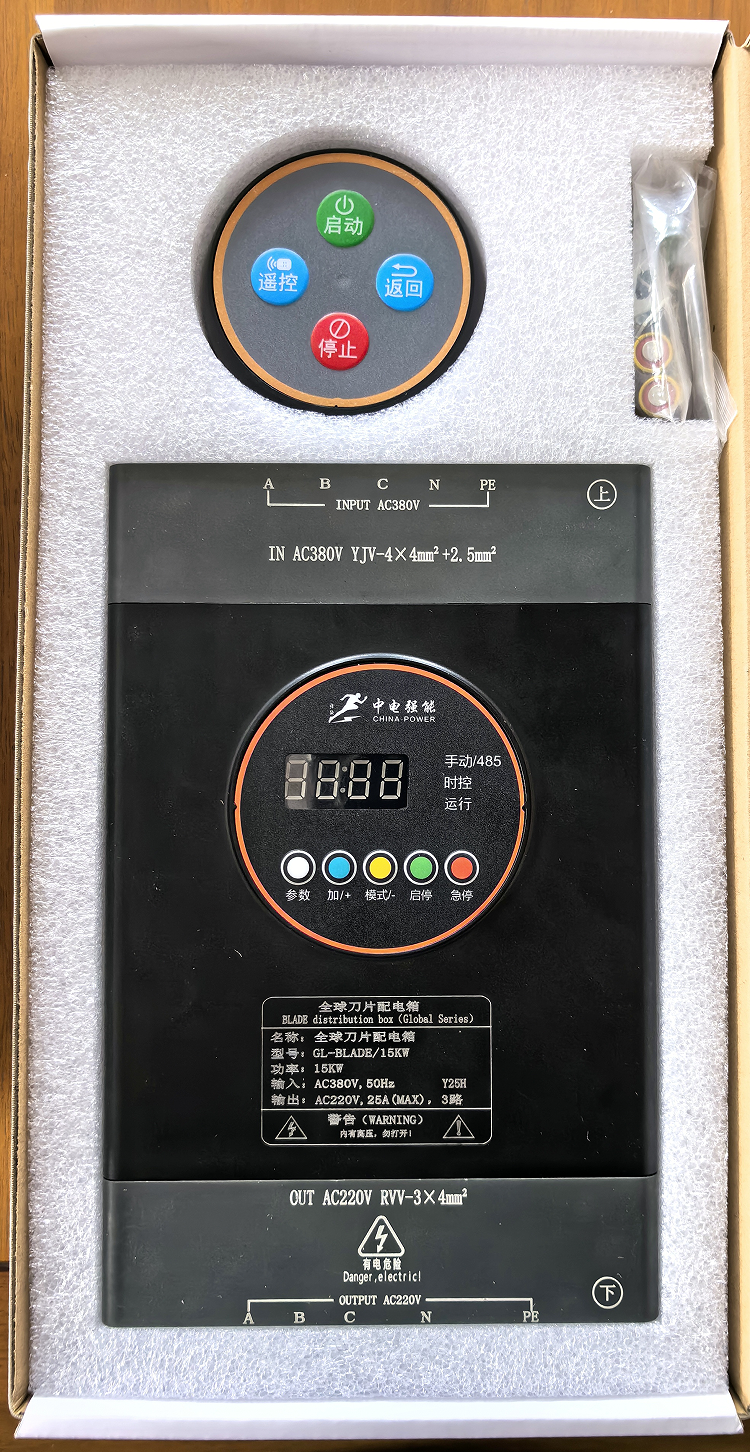

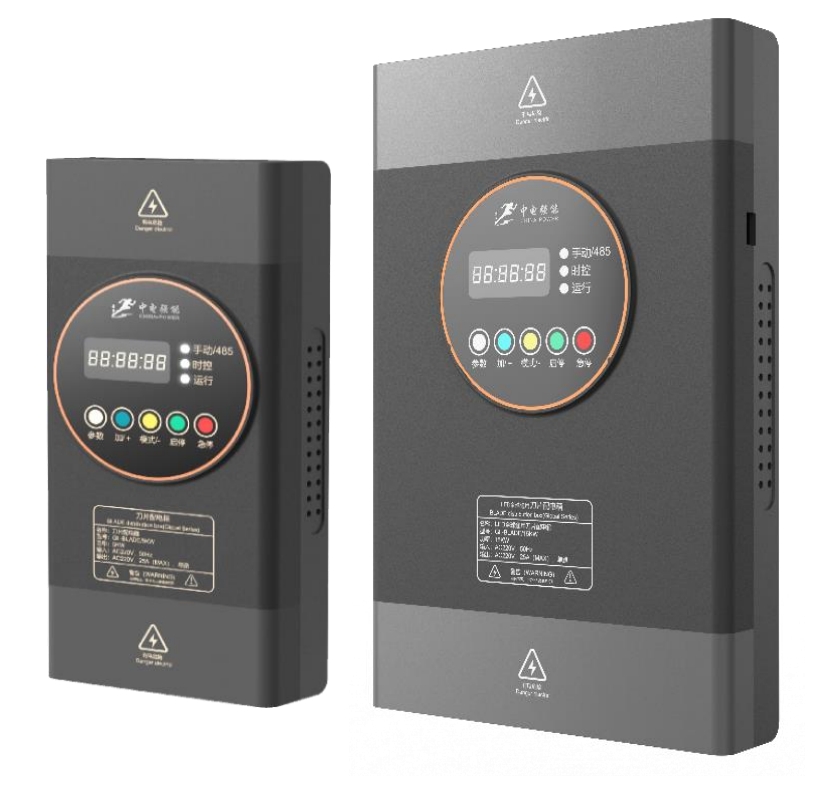

全球刀片配電箱 GL-BLADE/5KW/15KW
1、型號Model:GL-BLADE/5KW或GL-BLADE/15KW
2、名稱Name:全球刀片配電箱 Global blade 5KW distribution box
3、應用場景Application scenarios: E結構、K結構、臻結構、廣告屏、門頭屏、C0B屏、室內屏、一體機
E-structure, K-structure, Zhen structure, Advertising screen, Storefront screen, COB screen, Indoor screen, All-in-one machine screen, etc
4、功能特點:

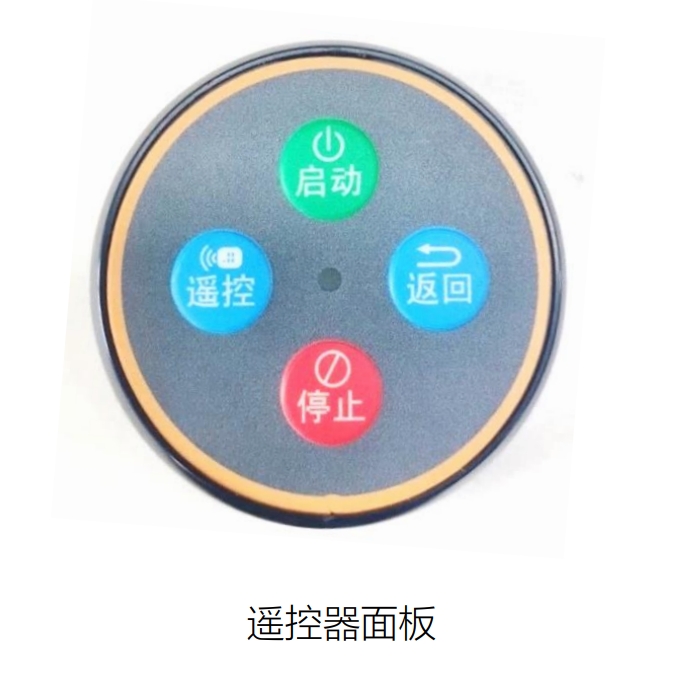

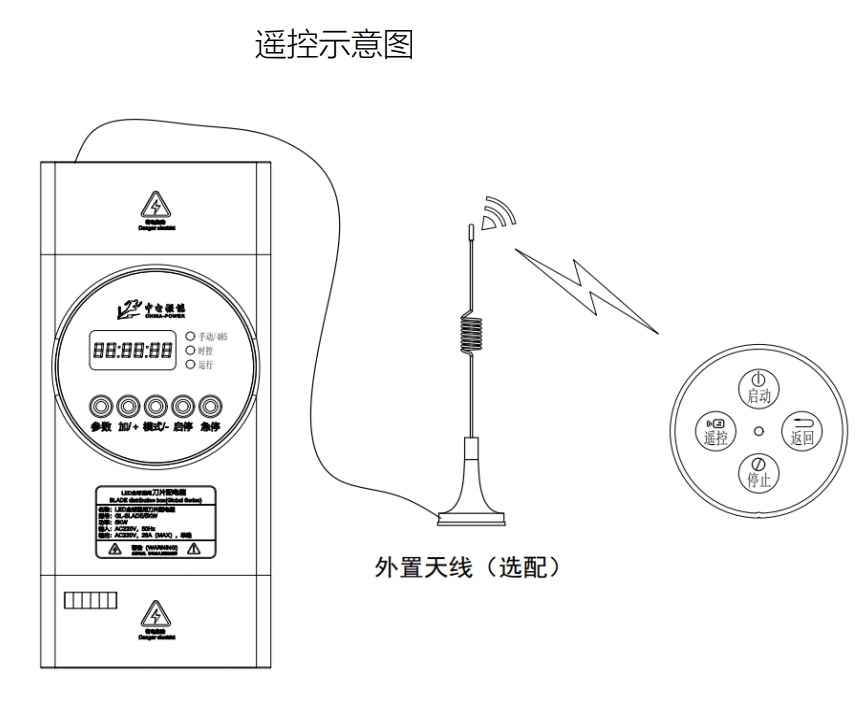

1)433遙控控制,30米
2)485有線控制,1000米
3)LORA無線級聯,2000米 (配AI語音無線中控)
4)支持硬件手拉手級聯
5)支持外部信號啟、??刂?br /> 6)支持4組定時啟、停控制
7)手動+時控+485+遙控
Functional features:
1)433 remote control, 20 meters
2)485 wired control, 1000 meters
3)LORA wireless cascade, 2000 meters(After upgrading)
4)Support hardware hand in hand cascading
5)Support external signal start and stop control
6)Support 4 sets of timed start and stop controls
7) Manual+Time control+485+Remote control
5、保護能力: 1)火、零接反保護 2)掉電反驅動保護 3)零線溫度保護 4)維修模式保護
Protection capability: 1)Fire and neutral reverse protection 2)Power off reverse drive protection
3)Zero line temperature protection 4)Maintenance mode protection
6、其他:
1)質保:五年 2)重量:1KG(1.5KG)
3)體積:180mmx80mmx30mm(200mmx130mmx30mm)
4)使用:

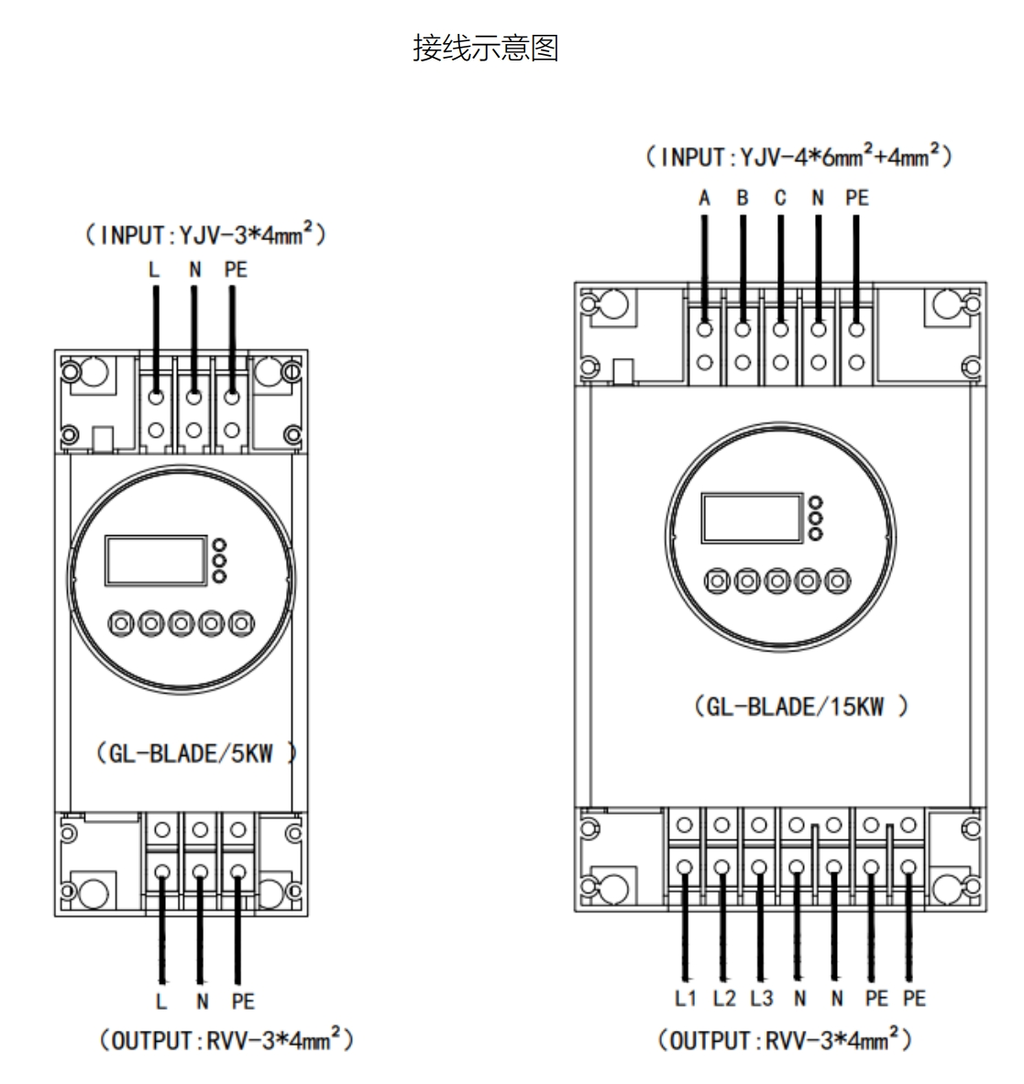

5KW,國內+海外(110V-220V),單相,3線
15KW,國內+海外(220V-380V),三相,5線
Other:
1)Warranty: Five years 2)Weight: 1KG(1.5KG)
3)Volume: 180mmx80mmx30mm(200mmx130mmx30mm)
4)Usage:
5KW, Domestic+overseas (110V-220V), single-phase, 3-wire
15KW, Domestic+overseas (220V-380V), three-phase, 5-wire








2、名稱Name:全球刀片配電箱 Global blade 5KW distribution box
3、應用場景Application scenarios: E結構、K結構、臻結構、廣告屏、門頭屏、C0B屏、室內屏、一體機
E-structure, K-structure, Zhen structure, Advertising screen, Storefront screen, COB screen, Indoor screen, All-in-one machine screen, etc
4、功能特點:
1)433遙控控制,30米
2)485有線控制,1000米
3)LORA無線級聯,2000米 (配AI語音無線中控)
4)支持硬件手拉手級聯
5)支持外部信號啟、??刂?br /> 6)支持4組定時啟、停控制
7)手動+時控+485+遙控
Functional features:
1)433 remote control, 20 meters
2)485 wired control, 1000 meters
3)LORA wireless cascade, 2000 meters(After upgrading)
4)Support hardware hand in hand cascading
5)Support external signal start and stop control
6)Support 4 sets of timed start and stop controls
7) Manual+Time control+485+Remote control
5、保護能力: 1)火、零接反保護 2)掉電反驅動保護 3)零線溫度保護 4)維修模式保護
Protection capability: 1)Fire and neutral reverse protection 2)Power off reverse drive protection
3)Zero line temperature protection 4)Maintenance mode protection
6、其他:
1)質保:五年 2)重量:1KG(1.5KG)
3)體積:180mmx80mmx30mm(200mmx130mmx30mm)
4)使用:
5KW,國內+海外(110V-220V),單相,3線
15KW,國內+海外(220V-380V),三相,5線
Other:
1)Warranty: Five years 2)Weight: 1KG(1.5KG)
3)Volume: 180mmx80mmx30mm(200mmx130mmx30mm)
4)Usage:
5KW, Domestic+overseas (110V-220V), single-phase, 3-wire
15KW, Domestic+overseas (220V-380V), three-phase, 5-wire
